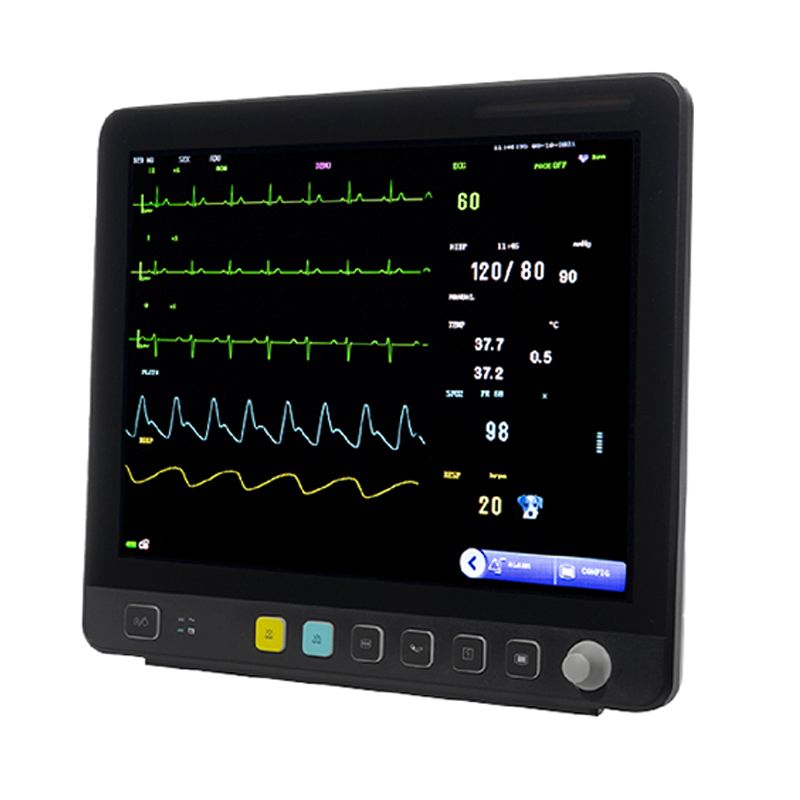

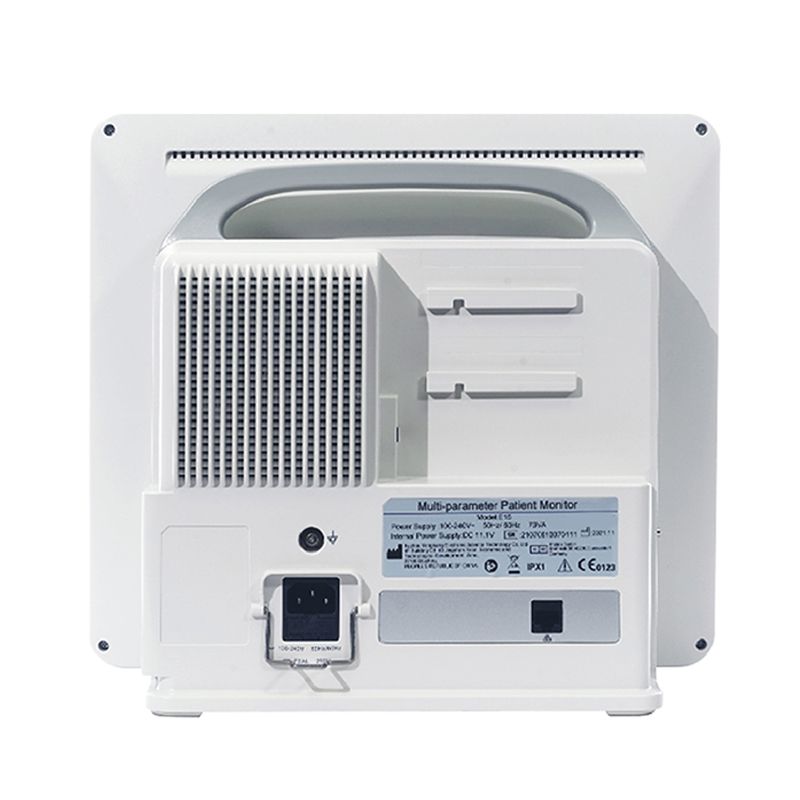

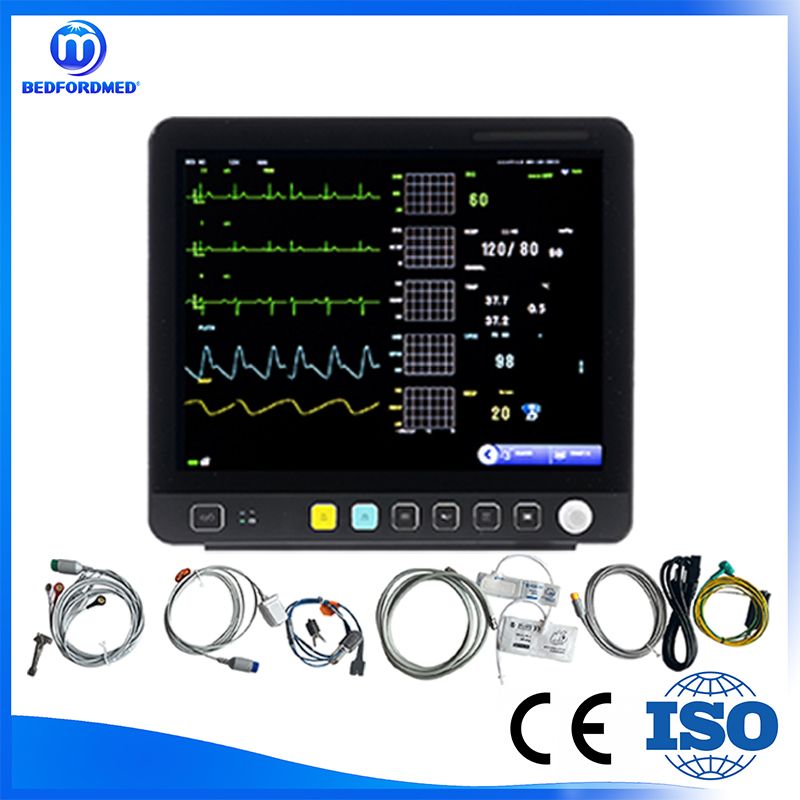

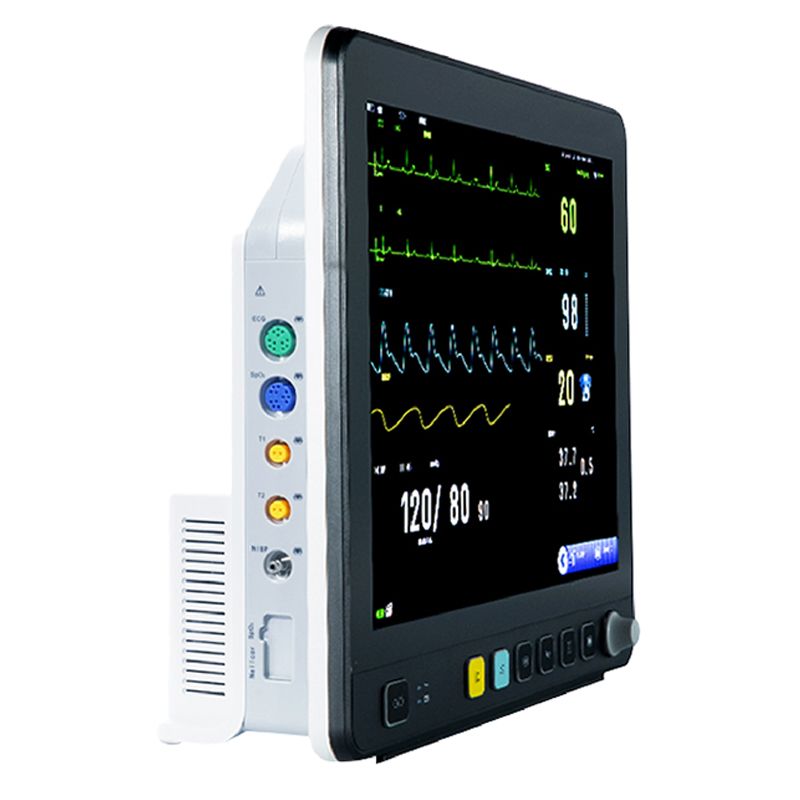

Animal Medical Surgery Operation Instrument Veterinary Monitor VE15

Share
documents & resoures

Animal Medical Surgery Operation Instrument Veterinary Monitor VE15


Product characteristics

1.15" high color TFT display.

2.ECG、SPO2、NIBP、RESP、TEMP、HR、PR

3.Optional expansion parameters CO2, lBP, walltrolley, built-in recorder.

4.Integrated plug-in monitor.

5.Powerful plug-in module optional function.

6.Support clinical measurement parameters.

7.Meet the needs of animal hospital operating room.

8.Supports multiple input devices.

9.Multiple modes of operation: diagnostic,monitoring, surgical mode.

10.Suitable for different groups of pets: large medium and small pets.

11.Multiple display modes: standard, large characters, trend chart, blood pressure list, etc.

12.Support ECG wave form multi-lead display on the same screen.

13.Non-invasive blood pressure measurement method: manual,continuous,interval measurement optional.


Product specifications

ModelVeterinary Monitor VE15
StandardECG、SPO2、NIBP、RESP、TEMP、HR、PR
optionalETCO2、IBP
NIBP

The anti-weak signal and anti-interference algorithm designed according to the characteristics of animal blood flow can quickly measure the accurate blood

pressure value.

Sp02  Advanced anti-interference and weak perfusion technology
ECG Patented ECG algorithm supports multiple arrhythmia recognition
ETCO2Mainstream and side-flow CO2 are efficient and easy to use for measurement of animals under Spontaneous breathing and mechanical ventilation.
Imported accessoriesNELLCOR SPO2,Suntech NIBP are optional Touch screen
Electrical specification220V,50Hz
Maximum input power70VA
Battery11.1V4000mAh rechargeable lithium battery


Animal Medical Surgery Operation Instrument Veterinary Monitor VE15
